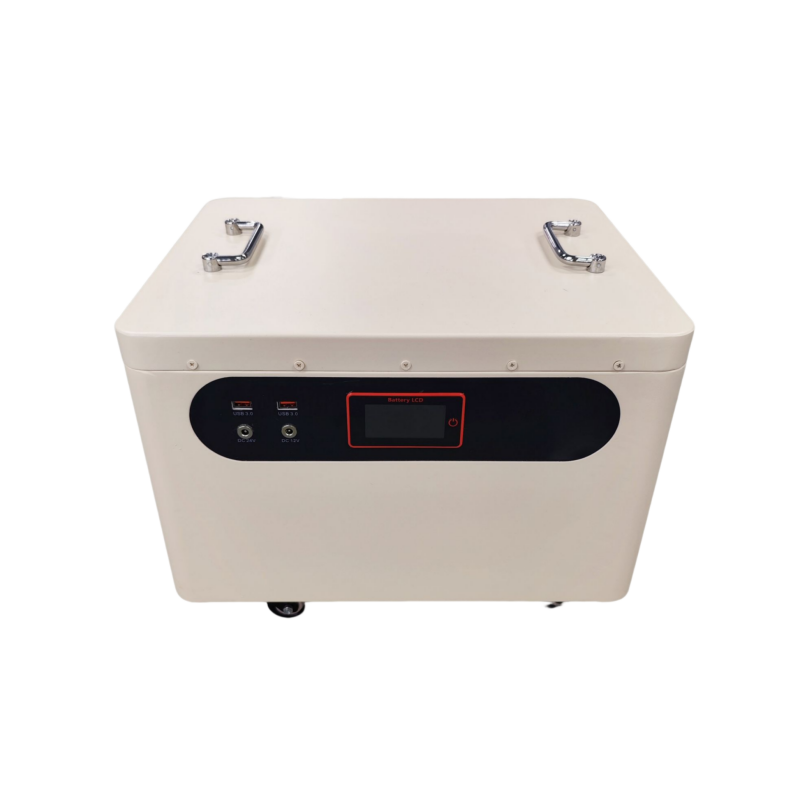

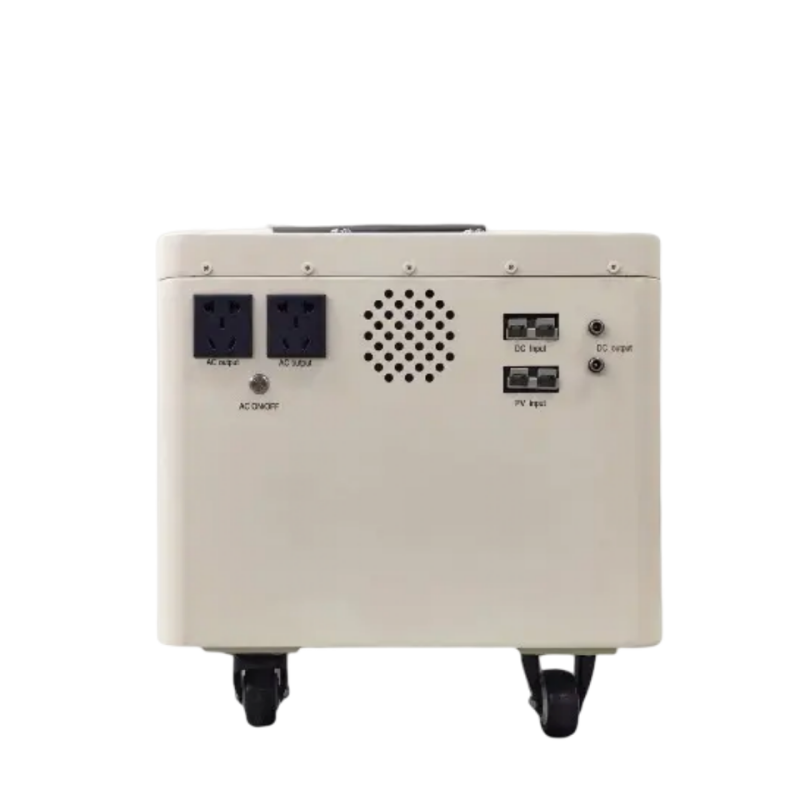

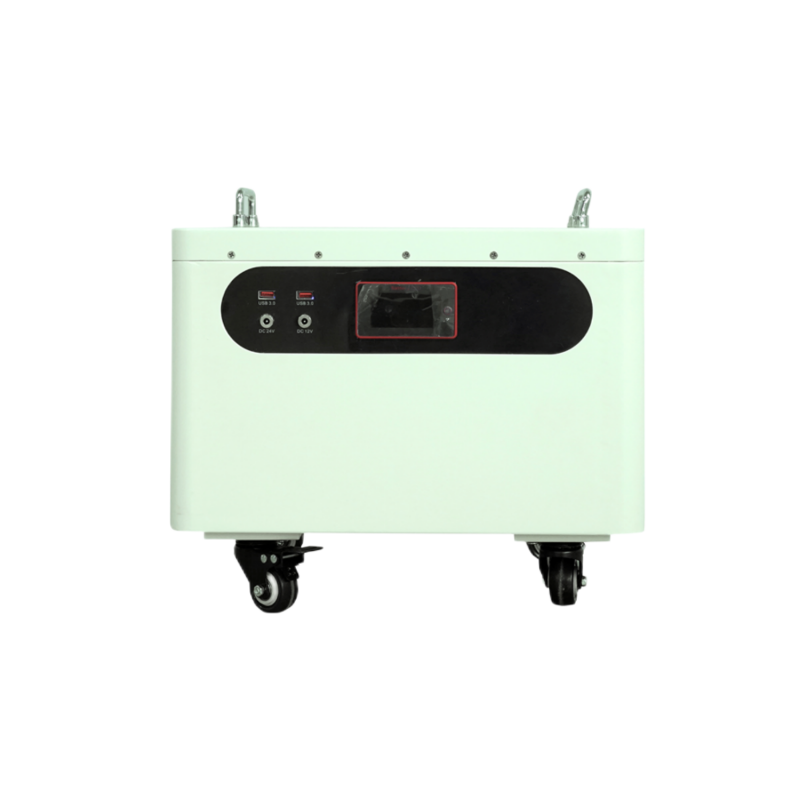

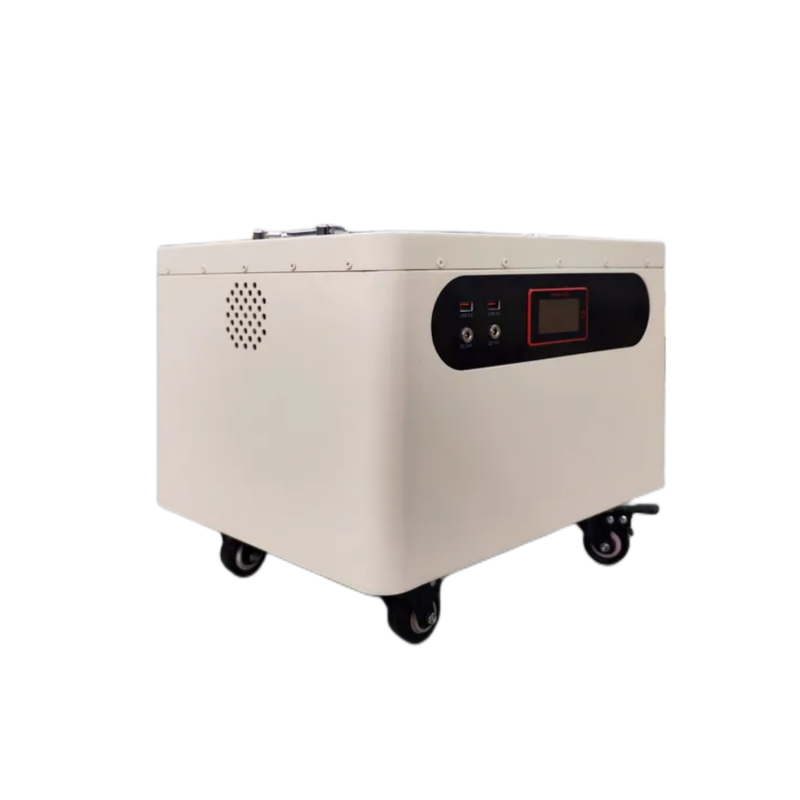

Name: 5kWh - 15kWh PV&Energy Storage all-in-one system 51.2V 300Ah LiFePO4 solar battery
Brand: iBorn Battery---Custom Lithium Battery Manufacturer Since 2011
Availability: InStock
Rating: 5 (1 reviews)

Nominal Energy: 15kWh
Nominal Voltage: 51.2V
Nominal Capacity: 300Ah
Dimensions: 640x415x380mm
Warranty: 3 year
Certificate: CE， UN38.3， MSDS
Safe and Reliable !

Get The Latest Quote

Description

Item	Specifications	Remark
Model No.	iBorn-5KW-15KWH	A grade LiFePO4 battery
Nominal Voltage	51.2V
Nominal Capacity	300Ah	5kWh~15kWh option
Dimensions	640415380mm	LengthWidthHeight
Cycle Life	≥6000 times	@0.5C 80% DOD
Depth of Discharge	90%
Operation Voltage	44.8V~57.6V
Max Discharge Current	200A
Weight (approx.)	145kg
Operation Temperature	Charge: 0℃~45℃, Discharge: -20℃~60℃
Storage Temperature	0℃~35℃
Communication Method	RS485, CAN
BMS Protection	Over charge, over discharge, over current, over voltage, short circuit, cell protection, temperature protection, etc.
PV Input Parameters
MPPT Route Number	1
Max PV Input Power	5500W
Max Open Circuit Voltage	500V DC
MPTT Open Circuit Range	120V~450V DC
	AC Output Parameters
AC Output Voltage	AC220V±5% or AC110V±5% (optional function)
AC Output Power	5000W
Output Waveform	Pure Sine Wave
Mains/Generator Input
Input Voltage Range	UPS:170~280Vac APL:90~280Vac
Frequency Range	50Hz/60Hz

-High Safety
-Eco-friendly and Zero Maintenance Requirements

-Good performance in high temperature and low temperature
-High consistency in capacity， voltage， resistance
-Brand-new grade-A battery cells can guarantee 6000 Lifecycles， which is 12 times than Lead-Acid battery.

Solar & Wind Projects, household&Commercial Energy Storage, outdoor power supply, solar street lights, lawn lamp, miner's lamp, emergency lights, backup power, UPS, electric scooter, electric bikes, motorcycles, electric tricycle, golf carts, Recreational Vehicles, Trolling Motors & Marine, power bank, small home appliances,Security Systems,Automatic Gates, Floor Scrubbers,Aerial Work Platforms,Telecom Stations ,E-Trikes, Low-speed Vehicles,Electric Vehicles,etc.

Certificates

Safety certificate: CE,CB, IEC62133, UL, PSE
Environmental certificate: ROHS, REACH
Quality management certificate: ISO9001, ISO14001, BSCI
Shipping certificate: UN38.3, MSDS, Air/Sea Transport Identification Classification Report

ISO19001

CB certificate

CE certificate

RoHS certificate

UN38.3 certificate

Production Process

Exhibitions

Brand Introduction

Founded in 2011,Shenzhen iBorn Energy has been China’s leading lithium battery manufacturer for over 15 years.Our main products are lithium-ion cells and battery packs, lithium polymer batteries, lithium iron phosphate (LiFePO4) batteries, Li-SOCl2(ER) batteries, home energy storage batteries, Solar Batteries, etc. Our Products are widely used in Portable Electronics like Bluetooth headsets portable speakers GPS Trackers, IoT devices, Electric Scooters, Electric Bikes, Solar Lights, Home Energy Storage Systems, Recreational Vehicles, Marine and Boats, Golf Carts, Electric Vehicles, etc.
Our factory is ISO9001& ISO14001 certified and located in the Dongguan City, Guangdong province, covering an area of 150,000 square meters, with over 1000 employees.Currently, the production capacity is: li-ion battery 300,000 pcs/day, lithium polymer battery 100,000 pcs/day, lithium iron phosphate battery 50,000 pcs/day, Li-SOCl2 battery 50,000 pcs/day.
