Protection for system integration
Overcharge, over-discharge, over-current and short-circuit protection are part of the stated pack architecture.
Power for exposed operating environments
Wide-Temperature Battery Packs for Field Devices
This 3.6V 18650 battery platform is built around a 2900mAh nominal capacity, a broad discharge temperature range and project-level integration choices. For teams sourcing custom lithium battery packs or comparing a wholesale lithium ion battery pack, the fit depends on the device architecture, temperature envelope and wiring plan.
3.6V nominal2900mAh nominal capacity
-40°C to 85°CDischarge temperature range
10A maxContinuous discharge current
Power profile
Electrical figures for the first integration review
Start with the pack's rated output, current limits and protection logic before discussing the enclosure, connector or installation environment.
| Cell / pack format | 18650 lithium-ion battery pack |
|---|---|
| Nominal voltage | 3.6V |
| Nominal / minimum capacity | 2900mAh / 2800mAh |
| Standard charge / discharge | 0.56A / 0.56A |
| Maximum continuous charge | 1.4A |
| Maximum continuous discharge | 10A |
| Charge method | CC/CV; charge cut-off 4.2V |
| Discharge cut-off | 2.75V |
| Internal resistance | ≤18mΩ |
| Cycle life | ≥500 cycles under the listed test conditions |
Cell balancing
Balancing helps keep series-connected cells aligned during operation and supports consistent pack behavior.
Temperature envelope
Separate charging, discharging and storage conditions
A wide operating range is useful only when the electrical limits and storage plan are reviewed together.
-40°C to 85°C is the discharge range for the battery pack.
At -40°C, the cell is designed to release more than 70% capacity at a 0.2C discharge rate.
Charging is listed from -20°C to 60°C, with different current limits across the lower temperature bands.
Storage guidance varies from -20°C to 25°C for up to 12 months through -40°C to 80°C within 30 days.
Integration inputs
Five details to settle before the pack is specified
These inputs turn a general battery request into a usable system conversation.
Confirm the device's nominal input and any peak-voltage behavior.
Match 2900mAh nominal capacity to the expected duty cycle and replacement plan.
Share connector type, cable length and routing constraints for the enclosure.
Describe the available space, vibration exposure and environmental protection needs.
Review protection, balancing and current limits with the system's controller.
Field-device fit
Where a wide-temperature pack earns its place
Use the application context to decide whether the pack's temperature and current envelope matches the deployment.
Outdoor monitoring
Weather stations, security sensors and remote data platforms can use the wide-temperature range where field replacement is difficult.
Vehicle-mounted systems
Vehicle terminals, GPS units, communication systems and transport monitoring devices benefit from a defined 36V power architecture.
IoT and edge nodes
Outdoor gateways, networking equipment and remote control units can be matched to the pack's discharge and integration limits.
Related products
Other battery formats for a different device brief
Compare the current pack with other iBorn products when voltage, capacity, size or chemistry points to another route.

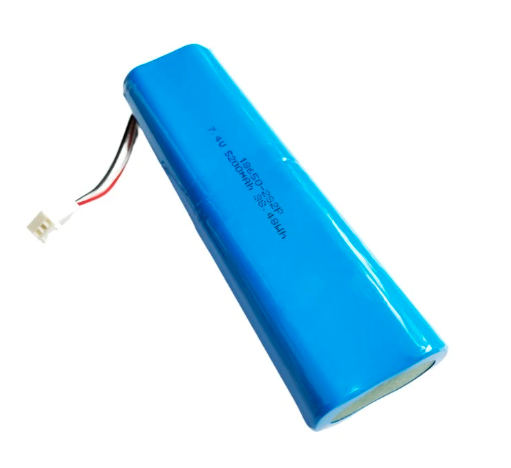

7.2V Wide-Temperature GPS Tracker Battery Pack
A higher-voltage wide-temperature battery route for GPS tracker systems.
View product details
3.6V Wide-Temperature GPS Tracker Battery Pack
A higher-capacity 3.6V option for GPS applications with a different runtime brief.
View product details

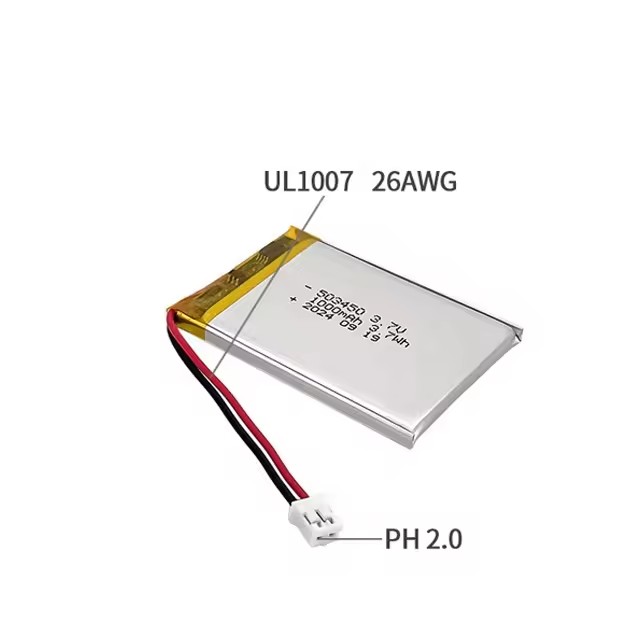

3.7V LiPo GPS Tracker Battery
A smaller LiPo format for compact GPS tracker and portable-device requirements.
View product detailsTechnical reading
Three practical questions for the project team
These articles add context around product lines, customization and long-term field operation.
How to navigate a lithium battery product line
Clarify where custom packs, lithium-ion cells and different chemistries fit into outdoor, GPS, vehicle and IoT projects.
Read the articleWhat can be customized in a 36V lithium battery pack?
Use voltage, capacity, wiring and enclosure decisions to prepare a more precise OEM battery request.
Read the articleHow temperature affects field-device service life
Connect thermal conditions, discharge behavior, cycle life and maintenance planning before deployment.
Read the articlePractical answers
Battery pack FAQ
What is the rated output of this battery pack?
The product is a 3.6V 18650 lithium-ion battery pack with a nominal capacity of 2900mAh and a minimum capacity of 2800mAh.
What temperature range is supported during discharge?
The discharge range is -40°C to 85°C, and the cell is designed to release more than 70% of its capacity at -40°C with a 0.2C discharge rate.
What current figures should an integrator review?
Review the 0.56A standard charge and discharge current, the 1.4A maximum continuous charge current, and the 10A maximum continuous discharge current.
Does the pack include protection features?
Yes. The pack includes protection against overcharge, over-discharge, over-current and short circuits, along with cell balancing.
Can the battery pack be customized for an OEM project?
Yes. Voltage, capacity, wiring harness and enclosure structure can be customized around project requirements and system integration needs.
Which field devices can use this type of battery pack?
The listed applications include outdoor equipment, GPS, military equipment, vehicle-mounted devices, IoT equipment, sensors, communication devices and other field systems.
Prepare the integration brief
Bring the device requirements to the quotation
Share voltage, capacity, duty cycle, connector, enclosure space and operating temperatures so the pack can be discussed around the real system.
