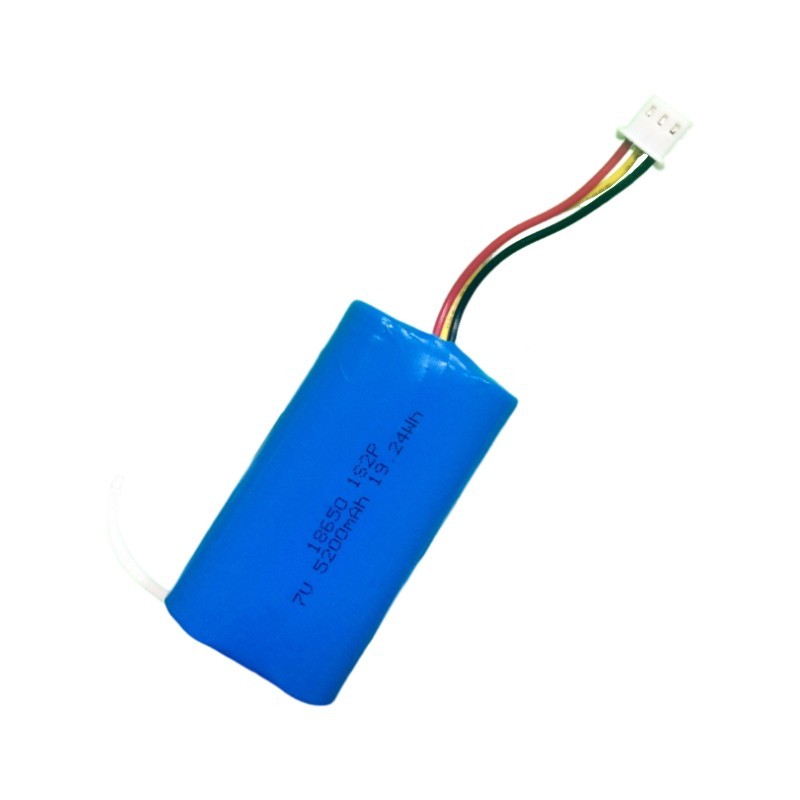

Name: 1S2P 18650 3.7V 5200mAh rechargeable lithium battery for gps tracker
Brand: iBorn Battery---Custom Lithium Battery Manufacturer Since 2011
Availability: InStock
Rating: 5 (1 reviews)

Description

Power Configuration for Compact Tracking Systems
This 1S2P 18650 lithium ion battery is engineered to supply consistent 3.7V output with a real 5200mAh capacity, specifically for GPS trackers and portable positioning terminals. The parallel configuration improves discharge stability and extends runtime in continuous data transmission environments. For system integrators and device manufacturers working with li-ion lithium battery solutions, this pack provides a reliable balance between size, weight, and energy density. The battery supports long standby cycles, making it suitable for fleet tracking, asset monitoring, and smart mobility hardware that requires uninterrupted low-voltage power.

Electrical Performance and Core Technical Parameters
The battery uses matched 18650 cells assembled in a 1S2P structure to ensure uniform internal resistance and balanced current flow. Rated at 3.7V with a nominal capacity of 5200mAh, this 3.7 volt lithium ion battery offers stable discharge curves under variable loads. Protection is achieved through integrated PCM design, providing safeguards against overcharge, over-discharge, overcurrent, and short circuit risks. Charge and discharge efficiency is optimized for daily cycling, which is essential for rechargeable lithium ion battery applications in mobile electronics and tracking hardware exposed to frequent charge routines.

Industry Application Value and Integration Efficiency
For GPS tracker manufacturers, telematics solution providers, and smart device assemblers, this battery enables predictable power management without redesigning existing low-voltage platforms. It integrates directly into compact housings while supporting long deployment cycles. As part of an expandable power solution, the battery aligns with the supply models used by lithium-ion battery manufacturers serving positioning, logistics, and IoT sectors. It reduces maintenance intervals, minimizes downtime caused by frequent replacements, and improves overall device reliability in real-world monitoring deployments.

Item	Specifications	Remark
Model No.	18650-2600-1S2P
Nominal Voltage	3.7V
Nominal Capacity	5200mAh	@0.2C standard charge&discharge
Max Dimensions	6837.519.5mm	LWH
Cycle Life	≥800 times
Charge Method	CC/CV with professional charger
Charge Cut-off Voltage	4.2V
Discharge Cut-off Voltage	2.75V
Standard Charge Current	0.2C
Standard Discharge Current	0.2C
Max Continuous Charge Current	1C
Continuous Discharge Current	1C
Peak Discharge Current	3C
Recommended Operation Ambient Temperature	Charge: 0~45℃ Discharge:-20~60℃
Storage Temperature	-20~25℃	12 months
	-20~45℃	3 months
	-20~60 ℃	1 month
Internal Resistance	≤100mΩ
Weight	Approx. 100g

-High Safety
-Real Capacity
-Low internal-resistance
-Stable Discharge Voltage
-High Consistency in Capacity&Voltage&Resistance
-No Fire，No Explosion，No Leakage

Bluetooth speaker， flashlight， solar light，intelligent door lock， gps tracker， parking device， medical device， POS machines， power tool， garden tool， sweeper， electric scooter， electric bike， outdoor power supply， etc

Use Scenarios

Fleet Operation Power Support for Vehicle Tracking Managers
For fleet operation managers responsible for logistics vehicles, cold-chain transport, or heavy equipment, reliable GPS tracking depends directly on stable battery performance. This 3.7 volt lithium ion battery ensures that vehicle-mounted trackers maintain continuous signal transmission across long routes without frequent manual charging. By using a rechargeable lithium ion battery with balanced discharge behavior, fleet managers reduce data loss during route monitoring, improve positioning accuracy, and avoid unexpected offline incidents that disrupt dispatch coordination and compliance reporting.

Asset Monitoring for Warehouse and Equipment Supervisors
In large warehouses and outdoor storage yards, supervisors rely on GPS-based asset tracking to prevent equipment loss and optimize utilization cycles. This lithium ion battery enables trackers to remain active across extended standby periods, even when assets remain stationary for weeks. For supervisors managing large inventories of movable assets, the battery’s extended cycle life reduces maintenance workload and avoids frequent battery replacement programs, which directly lowers operational labor cost and device downtime.

Integration Testing for Hardware Engineers and System Developers
Hardware engineers developing new GPS modules or IoT tracking terminals require stable, predictable power sources for long-duration testing cycles. This li-ion lithium battery provides controlled voltage behavior that allows engineers to evaluate firmware stability, signal transmission endurance, and thermal response under real-world operating loads. When sourcing from verified lithium-ion battery manufacturers, development teams gain consistent batch performance, enabling accurate test data comparison across multiple hardware iterations.

FAQ

1.Does this battery support continuous GPS signal transmission over long periods?
Yes, the 1S2P structure and stable discharge curve are designed specifically for continuous low-current transmission environments.

2.Is this battery compatible with most standard GPS tracker housings?
The 3.7V output aligns with most GPS tracking modules, but physical dimensions should be verified during integration.

3.What protection features are included in this battery pack?
It includes overcharge, over-discharge, overcurrent, and short circuit protection through an integrated PCM module.

4.What is the typical production and delivery cycle for bulk orders?
Standard models usually ship within regular production lead times, while customized versions require additional confirmation.

5.Is technical support available for system matching and integration?
Yes, technical guidance for voltage matching, protection thresholds, and charge adaptation is provided during project coordination.

Brand Introduction

Founded in 2011,Shenzhen iBorn Energy has been China’s leading lithium battery manufacturer for over 15 years.Our main products are lithium-ion cells and battery packs, lithium polymer batteries, lithium iron phosphate (LiFePO4) batteries, Li-SOCl2(ER) batteries, home energy storage batteries, Solar Batteries, etc. Our Products are widely used in Portable Electronics like Bluetooth headsets portable speakers GPS Trackers, IoT devices, Electric Scooters, Electric Bikes, Solar Lights, Home Energy Storage Systems, Recreational Vehicles, Marine and Boats, Golf Carts, Electric Vehicles, etc.
Our factory is ISO9001& ISO14001 certified and located in the Dongguan City, Guangdong province, covering an area of 150,000 square meters, with over 1000 employees.Currently, the production capacity is: li-ion battery 300,000 pcs/day, lithium polymer battery 100,000 pcs/day, lithium iron phosphate battery 50,000 pcs/day, Li-SOCl2 battery 50,000 pcs/day.
